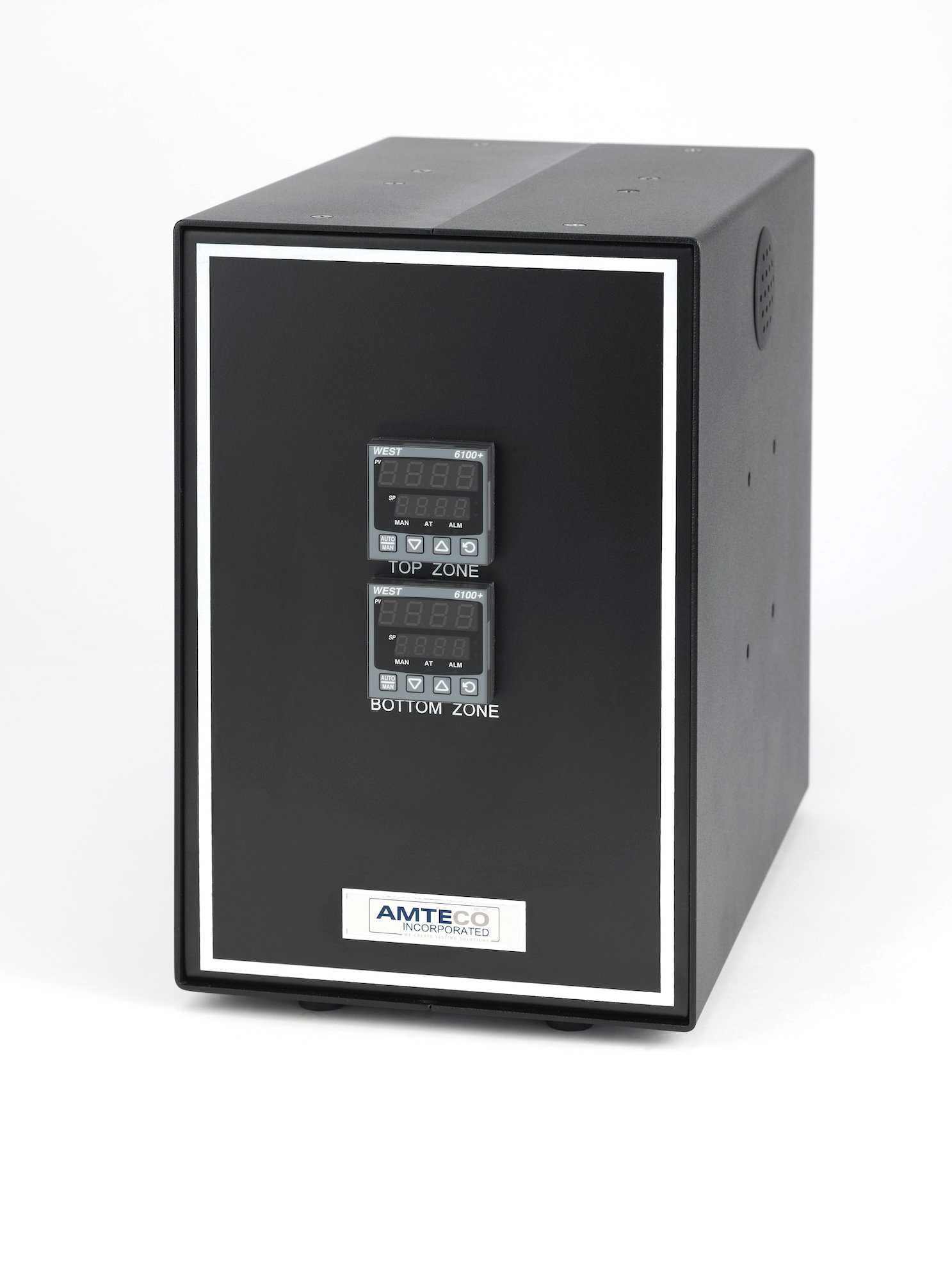

Two Zone 1500C Furnace Controller System HRFS-PS/S-TC-1500-2Z

This contoller is designed to work with our 1500C compact furnace. The controls provide critical circuitry to work with our custom heating elements to protect them and ensure they perform as designed.

• Solid enclosure construction and function
• Enclosure mounts for test frames available for ergonomic and space saving advantage (see photo)
• Simple easy to use controls for immediate plug-and-play capability
• Optional RS485 communications via rear panel connector

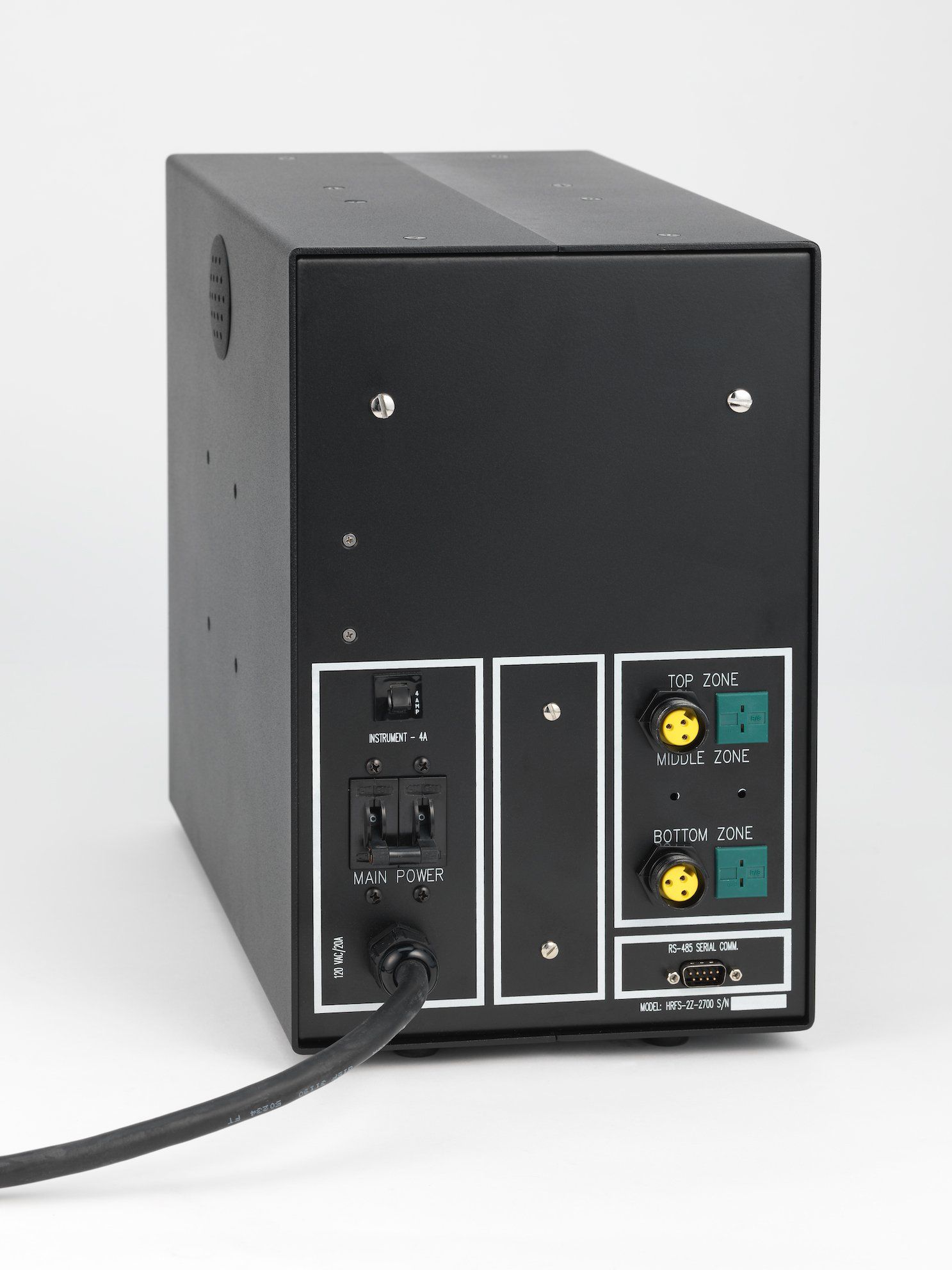

• Main power breaker with additional instrument safety breaker on rear panel
• Normally shipped with a ramp to set-point program, also offers multi segment programming capability
• Thermocouple options include R,S and B
• Open TC protection that will remove power to the furnace until the TC is replaced
• Enclosure dimensions: 8.25” (210 mm) wide X 13” (330 mm) X 13.5” (343 mm) deep
• Full scale high latching alarms
• Optional Mounting Arm Available

Price: $14100.00 base
