Another industry first for AMTECO

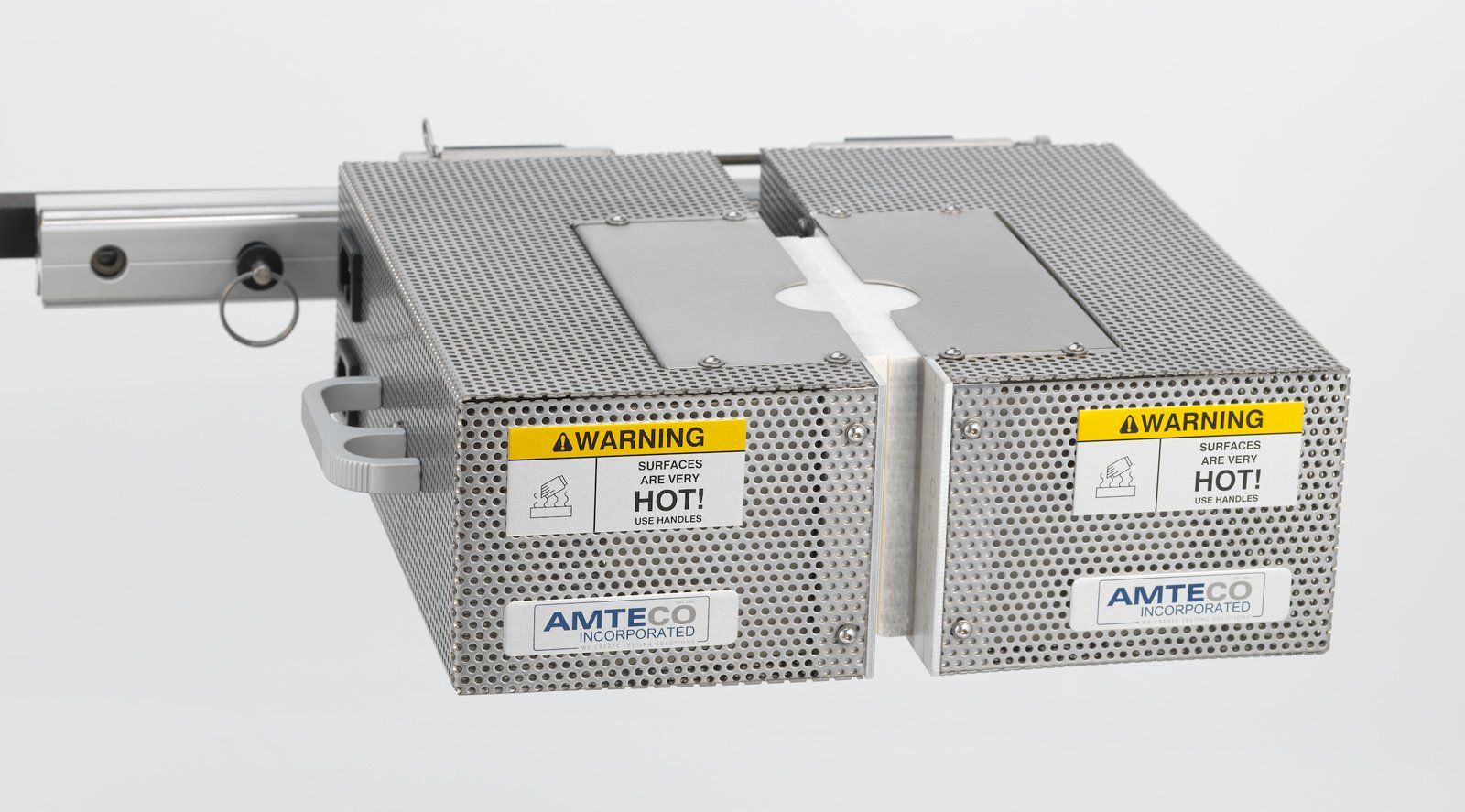

The first multi zone compact 1500C rated furnace system available

Furnace height of 3.65” (92.7 mm) total height. Has all the same great operational features of our 1400C furnace line. Also has an available Viewport System if visual / optical interrogation is required. This furnace system will support the increasing temperature capabilities of the next generation of advanced high temperature materials.

• Two independent heating zones for better temperature uniformity control
• 1700C cavity insulation construction. 2.20” (55.9 mm) tall. 19.6 in³ cavity volume
• Split furnace cavity that provides efficient and simple access to the test article
• Simple mounting system that can be customized for virtually any application, vertical and horizontal and LCF or EM frames
• Rapid heating rate capability >150 F/Min. (50C/Min.)
• Durable design made of lab grade materials for long service life
• Designed to work exclusively with our multi zone 1500C temperature controllers (120 VAC /20 AMP supply outlet required)

Price: $12590.00 base
